NConf is a web-based graphical configuration tool for Nagios/Icinga objects. It uses a small MySQL database to store configurations information and provides scripted configuration files installation.
NConf installation is straightforward.
Copy and extract the NConf tarball to the web root directory and change the ownership of the directory and its contents to the web server user (www-data).
Browse to NConf at http://<servername>/nconf, where you will be prompted to initiate the installation. The install first checks the installed packages and then prompts for the database configuration. Since the database does not yet exist, create and populate it with PHPMyAdmin. In this demonstration, I use the MySQL root user, but a live deployment should use a new user with limited privileges.
Configure the base path and -- very importantly -- specify the location of the Nagios / Icinga executable binary. NConf uses this to check its configurations.
Configure application authorization.
Delete the INSTALL and UPDATE directories and INSTALL.php and UPDATE.php files. NConf is now ready to use.
Migrating Existing Nagios /Icinga Configurations
NConf provides a script to migrate existing Nagios / Icinga definitions into its database, saving the administrator the task of manually recreating live configurations. NConf can only import one type of object at a time, so all object configuration definitions must be placed in separate files. This is not a difficult task using a text editor. Once the configuration files are properly written for NConf, use the import utility as described below.
Remove all Nagios / Icinga configuration files
Use the "/bin/add_hosts_from_nagios.pl" script to import objects as described in the Nagios Import Documentation.
Correct any import errors. Expected and common errors are listed in the documentation.
Deploy the configuration locally using the "/ADD-ONS/deploy_local.sh" script.
Adding a New Service Group with Five Services
Adding objects using the graphical interface is straightforward if you understand the structure of Nagios / Icinga configuration files. Adding five Advanced Services (to check monitoring agents using tcp_checks) and assigning them to existing Host Groups and a new Service Group is demonstrated below. 44 new objects on 11 hosts result from the update.
Adding a New Service Group with Five Services Using Scripts
The NConf documentation states that the "/bin/add_hosts_from_nagios.pl" script is intended for one-time use. This overlooks the usefulness of the script for quickly creating new objects. The experienced Nagios / Icinga administrator writes object configurations quickly and importing them from .cfg files can be faster than configuring them from the graphical interface. It also allows as administrator to maintain preconfigured object definition files for large deployments. For instance, if an enterprise upgrades its entire switch / router infrastructure, the administrator may configure object files in advance and deploy them as the equipment is installed.
The video below demonstrates creating the same Advanced Services and Service Group objects as performed above using scripts.
NConf is a useful tool for maintaining and deploying configurations. It is not a substitute for understanding the structure and optimization of object configuration files; it is complementary to that knowledge and experience. In practice, graphical configuration with NConf and editing configuration files are is iterative and complementary. NConf is particularly useful for renaming objects because any changes are updated globally throughout all configuration objects. But the administrator must also be able to understand the file structure to optimize definitions.
<data:blog.title/><data:blog.pageName/> Nagios/Icinga load their configurations from a series of .cfg files. This article describes (and provides basic examples of) the different files that control the Nagios/Icinga daemon and the objects it checks.
Main Configuration File
The Main Configuration File (/etc/nagios3/nagios.cfg or /etc/icinga/icinga.cfg) defines global environment settings for the Nagios / Icinga Service. There are only a few items a beginning Nagios / Icinga administrator needs to alter in this file:
Configuration file location paths
Enabling External Commands
Enabling NDOUtils / IDOUtils Database Integration
Advanced administrators may choose to set a wide array of performance and environment variables, but that is beyond the scope of this article.
Object Configuration Files
Object Configuration Files define all of the objects, services, events and actions Nagios / Icinga uses to monitor a network. There are 19 commonly-used definitions within the configuration files:
Services and Service Groups
Hosts and Host Groups
Host and Service Templates
Notification Escalations
Host and Service Notification Escalations
Extended Host and Service Information
Contacts and Contact Groups
Commands
Time Periods
Host, Service, Notification and Execution Dependencies
These 19 commonly-used definitions are explained in the Nagios Documentation, available as a downloadable .pdf file. Icinga Documentation is available online or as downloads.
Debian Wheezy Default Installation Files
At installation, Debian Wheezy provides the following Nagios configuration files and definition statements:
1) contacts_nagios2.cfg (Contacts and Contact Groups)
Notice how the above files organize commands. For the most part, each type of definition has its own file. However, there are related definitions placed together, and some of the services are split between files.
all Contact and Contact Group information are placed in the contacts_nagios2.cfg file,
all Host and host-specific Services information are placed in<hostname>_nagios2.cfg file and
all services assigned to multiple hosts in the services_nagios2.cfg file.
Thus, the installed object definition files specify 9 of the 19 commonly-used configurations in 8 files. The contacts_nagios2.cfg file specifies Contacts and Contact Groups. Services are defined in two files: localhost_nagios2.cfg and services_nagios2.cfg. There is a subtle, but important, distinction. Those defined in the localhost file are specific to that host; those specified in the services file may be applied to multiple hosts using Host Groups and Service Groups.
Following the example above, one would continue defining
all Contact and Contact Group information in a single file (e.g. contacts.cfg)
all Services used by multiple hosts in a single file (e.g. services.cfg) and
hosts and host-specific services in separate files for each host (e.g. <hostname>.cfg)
This is a logical solution and easy to troubleshoot. However,it is not necessarily the most efficient way to describe a network. With experience, it becomes more manageable to use 19 different files, each with its own specific definitions corresponding to the first bullet list in this section. More on the in Advanced Configuration. Nagios / Icinga are designed for flexible configuration. At service start up, they read all files with a .cfg extension – regardless of name – within the specified paths and use all properly-formatted “define” commands. This allows the administrator to define any sets of definitions that sensibly define the network.
The video below demonstrates the flexibility and portability of Nagios / Icinga configuration files. A fully-configured Icinga server monitoring 11 hosts for 287 services uses 14 configuration files in two directories to define the network. These files are grouped by the type of defintions they contain (e.g. Hosts, Host Groups, etc.) A Nagios server's Main Configuration file is modified to only search the /etc/nagios3/conf.d directory for definition files. The Icinga files are all copied to the Nagios server, which is then restarted. After five minutes, the two servers return identical information about the network.
Manually-Written Configuration Files
Writing Nagios / Icinga configuration files requires trial and error experience. Learning how to correctly – and efficiently – define a network is best learned in a test environment. Hence these articles use virtual machines installed on a laptop for demonstration purposes.
Network definitions using the sets of logical definitions installed by default works well. For instance, each host on the network will have its name and host-specific services defined in a file, resulting in a<hostname>.cfg file for each node; Services and Service Groups may be defined in a single services.cfg file; Contacts and Contact Groups may be defined within a single contacts.cfg file, etc. The administrator must, however, adhere to a uniform and logically-understandable format or the configuration quickly becomes unmanageable. Below is a brief set of example commands using the configuration file format in which each type of definition is included in a separate file. These commands ARE NOT optimized, with some duplication of definitions between hosts/services and host templates/service templates. However, definition file optimizations are another topic. Services
define service {
service_description Hardware - CPU Processes - Total
members pit-monitor.pittsburgh.mydomain.com,pit-router.pittsburgh.mydomain.com,pit-san.pittsburgh.mydomain.com,hbg-router.harrisburg.mydomain.com,hbg-backup.harrisburg.mydomain.com,phl-router.philadelphia.mydomain.com,phl-san.philadelphia.mydomain.com,phl-monitor.philadelphia.mydomain.com,laptop.coudersport.mydomain.com
}
define hostgroup {
hostgroup_name debian_servers
alias Debian Servers
members pit-monitor.pittsburgh.mydomain.com,pit-router.pittsburgh.mydomain.com,pit-san.pittsburgh.mydomain.com,hbg-router.harrisburg.mydomain.com,hbg-backup.harrisburg.mydomain.com,phl-router.philadelphia.mydomain.com,phl-san.philadelphia.mydomain.com,phl-monitor.philadelphia.mydomain.com
The base Nagios / Icinga installation uses files for all configuration and data storage. When the service starts, it reads the configuration from .cfg files listed in the Main Configuration File paths. Once the service has read and processed the configuration, it begins to collect and process data, with the results output to log files. Everything is file-based and the administrator may read the log files with a text editor or process them using log file analysis.
Nagios – Broker Module – Database Integration
Log files work well for small installations. However, they are too slow for large installations; they are not even used for more complex add-ons such as advanced web-based interfaces, visualizations and web-based graphical configuration tools. Scalable and utilitarian deployments require database integration.
Database integration is not limited to the Nagios / Icinga service. One example is the Icinga-Web advanced interface (as opposed to the Classic Icinga interface). Icinga-Web stores its configuration data in a database – named icinga_web on Debian Wheezy – and maintains data there. A second example is the NConf Nagios / Icinga configuration web-based configuration tool. NConf stores configuration information in its own database and outputs Nagios- / Icinga-compatible .cfg files that may be deployed to a server. These databases and tools may be deployed without integrating the Nagios / Icinga service with a database.
Database integration with the Nagios / Icinga process provides the previously stated scalability and utilitarian capabilities. The NagVis visualization package (to be discussed in another article) requires this integration. Thus, the administrator should enable it early in the installation and configuration process.

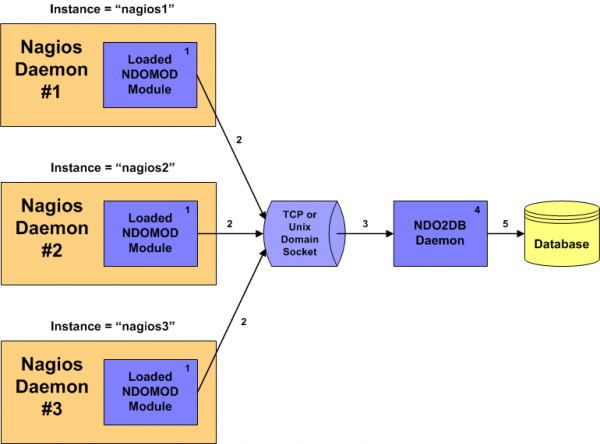

First, a simplified description of how these processes work is warranted. As previously described, the base Nagios / Icinga services read and write all configurations and output data to files. When integrated with a database, Nagios / Icinga still read the initial configuration information from .cfg files,just as before. However, output is no longer sent to files. The Main Configuration file specifies a broker module to output the data to the database. However, data is also protected from loss due database connection problems by first sending it to a temporary storage file. If the database is unavailable or a remote collector server can not reach the database server, the information is held locally until the connection is restored. The database contains all of the configuration information in tables and this is linked to output results tables. Keep in mind Nagios and Icinga do not use the database for startup configurations – this is still maintained in .cfg files – but that information is stored in the database to provide relations to the results.
Integrating with a database requires installing packages – ndoutils for Nagios and idoutils for Icinga. At installation, these packages create the requisite databases (ndoutils for Nagios and Icinga for Icinga) and provide the necessary modules. However, they are not enabled. The administrator must edit the Main Configuration file to enable database services. Once restarted, the broker module sends the configuration and output results information to the database.
The video below demonstrates and illustrates the process. In it:
Commence with a base Icinga installation
Illustrate the default MySQL Databases
Install the Icinga idoutils and Icinga-Web advanced web interface packages
Illustrate the MySQL database additions.
Modify the /etc/default/icinga configuration file and copy the broker module from /usr/share/doc/icinga-idoutils/examples/idoutils.cfg-sample to /etc/icinga/modules/idoutils.cfg to enable the database broker module
Restart Icinga
Illustrate the host table database changes upon enabling idoutils
Install configuration files defining 11 hosts and 250+ services
